Time battery 9007L

Time battery 9007L
Product code: 9007L
Series: Specialistic
Category: Baterries for the disabled
Finishing: With mixer
Amount:

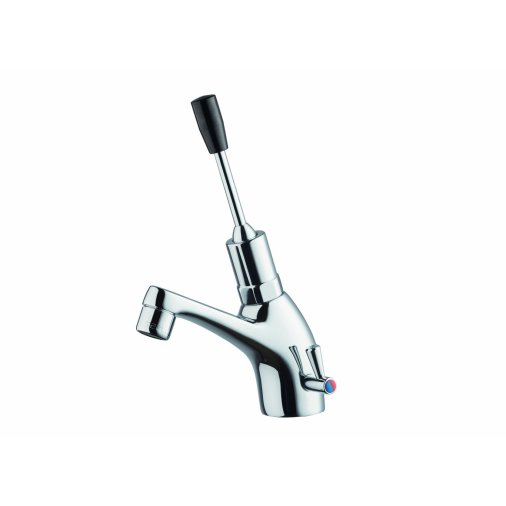

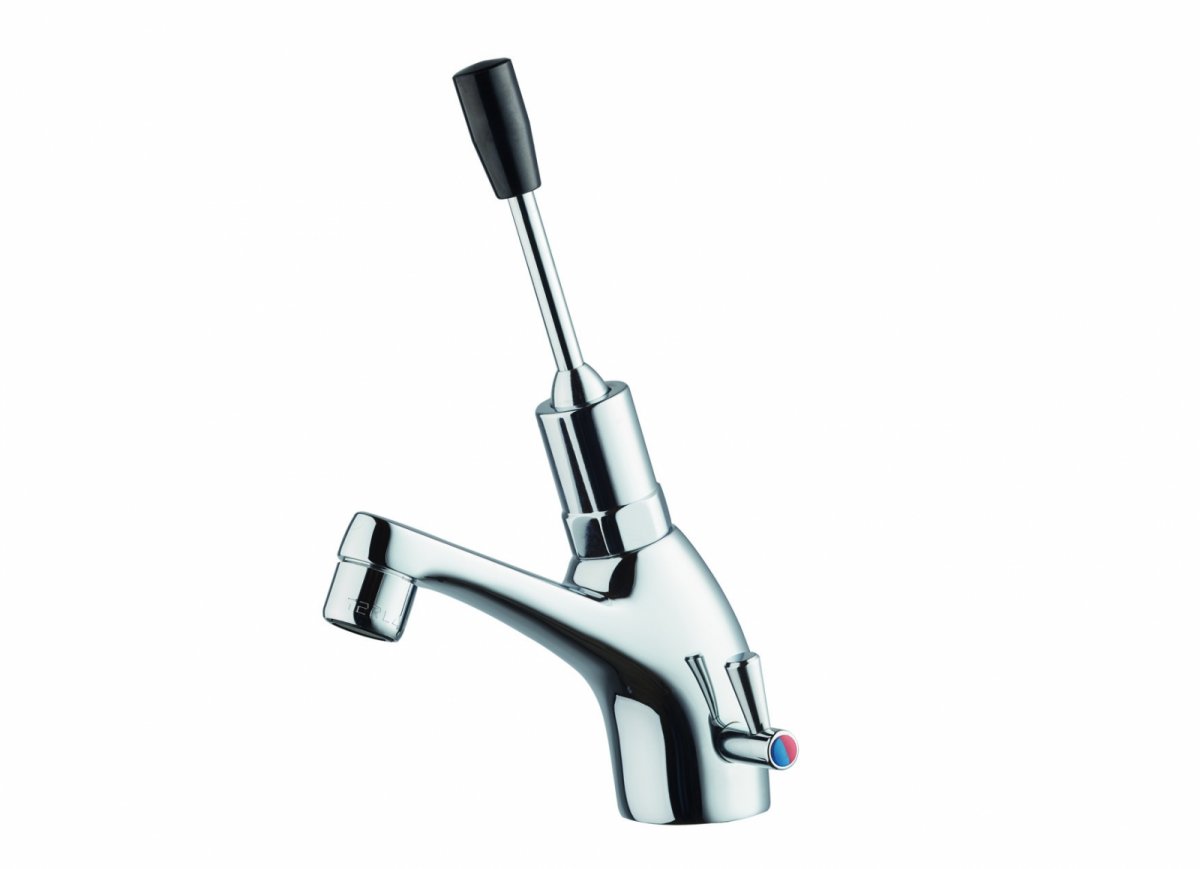

The washbasin timer with an integrated mixer and aerator is a reliable product most often used in public spaces. The 9007L faucets is made of corrosion-resistant chrome-plated brass. In the side part of the body, there is a mixer, regulated by a lever.

The 9007L battery has two G1 / 2 connections. A single flow of water takes about 10 seconds ± 3 seconds (at a water pressure of 3 bar). The amount of water used for a single outflow is approx. 6 l / m. However, the minimum connection pressure is 0.5 bar, the maximum is 6 bar, but it is worth adding that the recommended connection pressure should be 2-4 bar. The 9007L basin mixer has several elements that regulate the time and amount of water flow:

  • a cup regulating the flow of water;
  • a water flow reducer, attached to the faucet;
  • water flow regulating hole, water flow time adjustment option is not available when the anti-block system is used.

Each 9007L basin tap is certified by the Polish Institute of Hygiene, CE Declaration of Conformity, and the National Declaration of Performance.

Product features and benefits:

  • A lever built into the side of the body used to change the temperature of the outgoing water
  • Built-in mixer
  • Water flow time control
  • Water pressure reduction in the form of a cup and water flow reducer
  • High resistance to vandalism
  • The body is made of chrome-plated brass
  • Vandal-resistant design
  • Exceptional durability and reliability
  • Italian product
  • Simple operation
  • Easy to assemble
  • PZH certificate, CE declaration
Option

With mixer

Connector

2 x 1/2"

Mixer

Manual

Design

Vandal-resistant - chrome plated brass

Water time flow

Adjustable from 10 seconds ± 3 second

Start

By lever

Water pressure reductor

up to 6l / min.

Spout

Equipped with an aerator

Contains

Battery, 2 hoses 1/2 ", 350 mm long, 2 1/2" fittings equipped with check valves and seals, mounting kit for the wash basin
